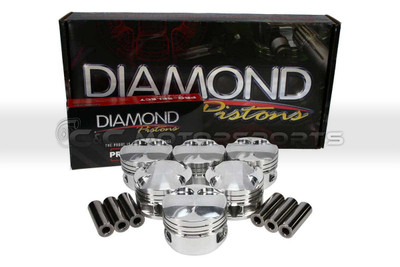

Diamond Racing Pistons Diamond Racing Forged Rebel Series Pistons - 86.5mm +0.5mm -6.5cc 9.6:1 for Supra MKIV

Write a Review
MSRP: $1,664.80
$1,284.91
(You save $379.89 )
SKU:
DIA 37104-6

2JZGTE Rebel Series

Forced pin oilers from the oil ring;Pin Fitted;Later Gas Ports;3D Pockets;Pins, Pin Buttons included

Piston Features:
  • 3D milling on piston crowns for ready to install finish
  • Side gas ports for better ring seal
  • Ratios figured for 87mm x.040 head gasket @ 8.621 deck
  • Top ring down dimension:.325"
  • Designed for pin buttons for maximum strength
  • Designed to work with MGP Rebel series Aluminum Rods
  • Premium H-13.225W wrist pins included
  • Premium 1.5mm x 1.5mm x 3.0mm ring package included
  • Oversized valve pockets - for larger than stock valves
  • Valve pocket depth:.245" intake and.230" exhaust
  • 2618 material for High HP/Boost applications - rated for 2000hp

filter_Stroke:
86mm (Standard Stroke)
filter_Compression Ratio:
9.6:1
filter_Bore Diameter:
86.5mm
Pin Size:
0.866Inch / 22mm
Included Ring Set:
09053405
Included Pin Locks:
PB-37104-12
Included Pin:
H8662500225C
Head cc:
45 cc
Dome cc:
-6.5cc
Compression Height:
1.338Inch / 34mm
Skirt Type:
Full Round
Rod Length:
5.590Inch / 142mm
Piston Material:
2618
  • 1993-1998 Toyota Supra TT
  • 1993-1998 Toyota Supra NA
  • 1992-2000 Lexus SC300 / Soarer
  • 2001-2005 Lexus IS300
  • 1991-1997 Lexus GS300 / Aristo
  • 1995-2005 Lexus GS300 / Aristo

Compatible Engines
  • 2JZ-GE
  • 2JZ-GE VVTi
  • 2JZ-GTE
  • 2JZ-GTE VVTi
