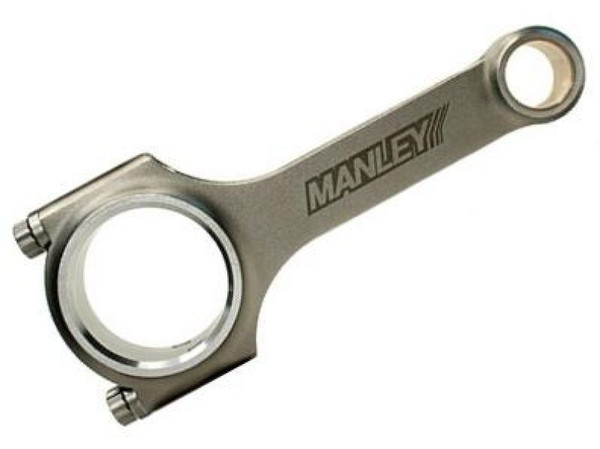

Manley Performance H-Tuff Forged H Beam HD Connecting Rods Set for Supra MKIV

MSRP: $941.51

$833.79

(You save $107.72 )

SKU:

15027-6

Description
Item Specs
Fitment
Shipping & Returns

Description

The second generation of ManleyÆs H-Beam style rod bridges the gap between their standard H-Beam and their Turbo Tuff I-Beam design. The more robust H-Tuff design has increased cross-section thickness in all of the critical areas with a wider beam, increased blade thickness and larger pin bore surround. Rated for 1,000 WHP they come standard with ARP 2000 bolts.

This is a great option for someone who is worried about maxing out the hp rating of the h-beam but not looking to step all the way up to an I-Beam.

Manley Rod Bolt Recommended Torque w/30wt. Oil: 60 ft./lbs.
Recommended Rod Bolt Stretch w/30wt. Oil:.0058"-.0062"

Manley "H Tuff" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by Manley Performance's original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.

Features:

H-Tuff Series with heavier beam for higher boost applications

Manufactured from 4340 forgings

Heat treated, stress relieved, shot peened and 100% individually magnafluxed

Weight matched sets + 1.5 grams

Cap fasteners are 3/8" ARP 2000 for theöHö Beam and 3/8" ARP Custom Age 625+ for the H-Plus

Item Specs

Item Weight:

645 g

Pin Size:

0.866Inch / 22mm

Rod Material:

Forged Steel

Rod Length:

5.590Inch / 142mm

Rod Journal Size:

Factory OEM Diameter

Rod Bolt:

3/8Inch ARP 2000

Big End Width:

1.015

Big End Bore:

2.167

Beam Type:

H-Beam

Rod Length Oversize:

Standard Length

Fitment

1993-1998 Toyota Supra TT
1993-1998 Toyota Supra NA
1992-2000 Lexus SC300 / Soarer
2001-2005 Lexus IS300
1991-1997 Lexus GS300 / Aristo
1995-2005 Lexus GS300 / Aristo

Compatible Engines

2JZ-GE
2JZ-GE VVTi
2JZ-GTE
2JZ-GTE VVTi
