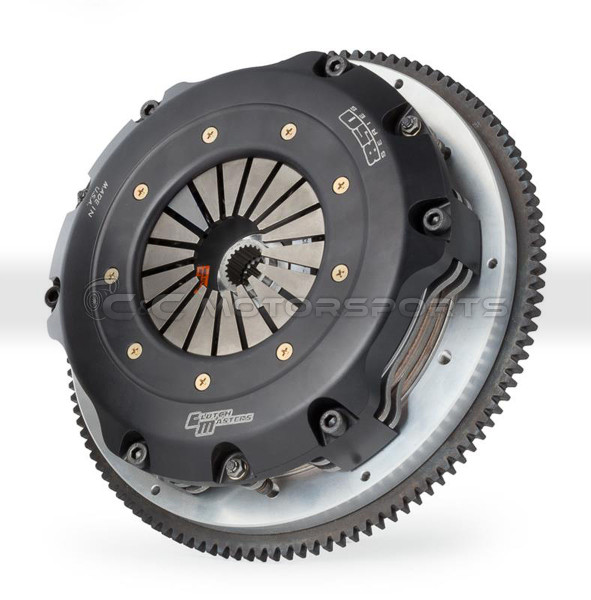

Clutch Masters FX850 Twin Race / Street Steel Flywheel Kit for Supra MKIV TT
MSRP:
$2,655.00
$2,250.00
(You save
$405.00
)
SKU:
16000-TD8S-SVH
Toyota Supra 1992-2002 2JZ Eng. & 2JZ Trans. (6-speed JDM Eng & Trans) 6Cyl Toyota Supra 1994-1998 3.0L Turbo (6-Speed) 6Cyl
850 SERIES û (8.50ö Twin Disc)
The 850 series is a larger diameter assembly, which is designed for high horsepower applications. The 850 Series has a higher holding capacity, less clutch chatter, and a smoother engagement compared to the 725 Series. The 850 series Twin disc will accept one sprung disc creating a slightly smoother engagement compared to two rigid discs
Available Stages:
ôStreet and Raceö (TD8S) û 1 sprung ceramic disc, and 1 fiber tuff rigid disc
ôRaceö (TD8R) û 1 sprung ceramic disc, and 1 ceramic rigid disc.
Clutch Masters offers custom option when required by utilizing a variety of friction surfaces, discs and pressure ratings to satisfy any need!
Clutch Masters Twin Disc features:
- Components can be purchased separately for economical repair.
- Positive release for ease of high RPM staging and shifting.
- Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair
All systems include:
- Aluminum Cover Assembly with attached Diaphragm
- Pressure Plate Ring
- Two Discs
- One Mid Plate
- Billet Aluminum Flywheel (Steel available on select applications)
- Release Bearing
- Pilot Bearing (when applicable)
- Pressure Plate Bolts
Average weight of the entire assembly is over 50% lighter than OEM
Transmission:
V160/V161 6 Speed Manual
Flywheel Material:
Steel
Transmission Text:
V160/V161 6 Speed Manual
Clutch Plates:
Twin
Disc Diameter:
8.5
Clutch Disc Type:
Sprung, Unsprung
Clutch Disc Material:
Ceramic, Organic/Fiber
Clutch Disc Face:
Full Face/Segmented
Throw Out Bearing Type:
Push
Pressure Plate:
Heavy Duty
Flywheel Included:
Yes
Notes:
Clutchmasters Toyota Supra 1992-2002 2JZ- Eng. & 2JZ- Transmission. (6- Speed JDM Eng & Transmission) Twin Disc. 8.50 in. (Race/Street). Steel flywheel included. Push type conversion. Hydraulic slave cylinder included
- 1993-1998 Toyota Supra TT
Compatible Engines
- 2JZ-GTE
- 2JZ-GTE VVTi
