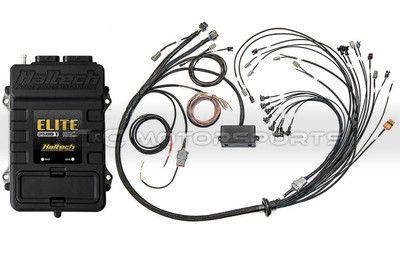

Haltech Elite 2500 + Manual HPI6 Terminated Harness Kit for Supra MKIV TT

Write a Review
MSRP: $4,016.72
$3,660.00
(You save $356.72 )
SKU:
HT-151326

INJECTOR CONNECTOR: Bosch EV1

SUITS: Non VVT-i engines. Manual transmission only.

INCLUDES: Elite 2500 ECU with DBW and Race Functions. engine harness with fuse block, firewall grommet, pre-wired HPI6 15AMP 6CH ignition module and factory coil ignition harness, USB programming cable and USB Software Key.

NOTES: If your engine is fitted with the factory electronic ETCS-i throttle body it will require a "Throttle Convert Kit" or conversion to a cable operated mechanical throttle body.

ECU OVERVIEW

Haltech's Elite 2500 ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 2500 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

  • Supports 1 to 12 Cylinder engines
  • 2 to 4 Rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, Sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN.
  • Waterproof Case (With Pocket Cover Fitted)
  • 8 x Fuel Injection Outputs
  • 8 x Ignition Outputs
  • 12 x Digital Outputs
  • 10 x Analogue Voltage Inputs
  • 4 x Synchronised Pulsed Inputs
  • 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
  • 2 x Dedicated Engine Position Inputs with extensive trigger type support
  • Up to 45 channels of Input & Output (I/O) expansion (via CAN)
  • USB Laptop communication (Windows)
  • ESP Calibration Software - Intuitive and easy to use

  • 1993-1998 Toyota Supra TT

Compatible Engines
  • 2JZ-GTE
